Plot Distribution of Simulated Infit and Outfit MSQ Values

Source: R/infitcutoff_plot.R
RMitemInfitCutoffPlot.Rd

Visualises the distribution of simulation-based conditional item fit values from RMitemInfitCutoff, optionally overlaying observed item fit from the original data.

Usage

RMitemInfitCutoffPlot(simfit, data, output = "infit")

Arguments

simfit

The return value of RMitemInfitCutoff (a list with components results, item_cutoffs, actual_iterations, sample_n, and item_names).

data

Optional. A data.frame or matrix of item responses for computing and overlaying observed conditional item fit values. Items must be scored starting at 0 (non-negative integers). When provided, the plot includes orange diamond markers for the observed infit/outfit MSQ alongside the simulated distribution, plus segment summaries from the cutoff intervals.

output

Character string. Either "infit" (default) to show only the infit panel, "outfit" to show only the outfit panel, or "both" to show infit and outfit side by side (requires the patchwork package when data is supplied).

Value

A ggplot object (or a patchwork object when output = "both" and data is supplied).

Details

Uses ggdist::stat_dotsinterval() (when data is not supplied) or ggdist::stat_dots() (when data is supplied) with point_interval = "median_hdci" and .width = c(0.66, 0.999).

When data is not supplied, the function plots the simulated MSQ distributions as dot-interval plots using ggdist::stat_dotsinterval() with median and Highest Density Continuous Interval (HDCI) summaries, faceted by statistic (InfitMSQ / OutfitMSQ).

When data is supplied, the function:

  1. Fits a Rasch model (eRm::RM() for dichotomous data or eRm::PCM() for polytomous data) and computes observed conditional infit and outfit MSQ via iarm::out_infit().

  2. Overlays observed fit values as orange diamond markers on the simulated distributions.

  3. Shows per-item cutoff intervals (from simfit$item_cutoffs) as black line segments, with thicker segments for the 66% HDCI range and black dots for the median.

The ggplot2, ggdist, and optionally patchwork packages must be installed (they are in Suggests, not Imports).

See also

RMitemInfitCutoff, RMitemInfit

Examples

# \donttest{
set.seed(42)
sim_data <- as.data.frame(
  matrix(sample(0:1, 200 * 10, replace = TRUE), nrow = 200, ncol = 10)
)
colnames(sim_data) <- paste0("Item", 1:10)

# Run simulation
cutoff_res <- RMitemInfitCutoff(sim_data, iterations = 100, parallel = FALSE,
                            seed = 42)

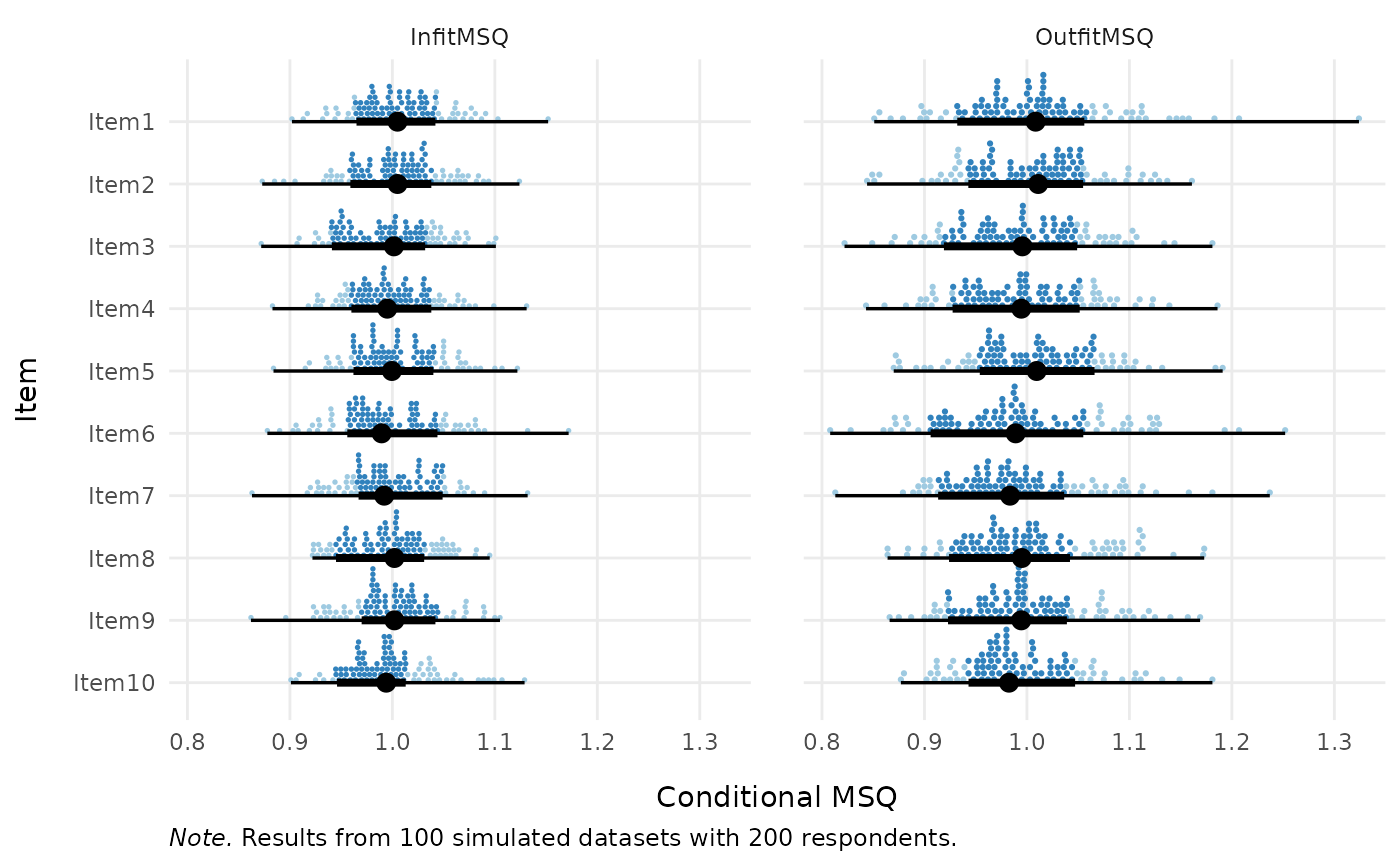

# Simulated distribution only (infit + outfit faceted)
RMitemInfitCutoffPlot(cutoff_res)

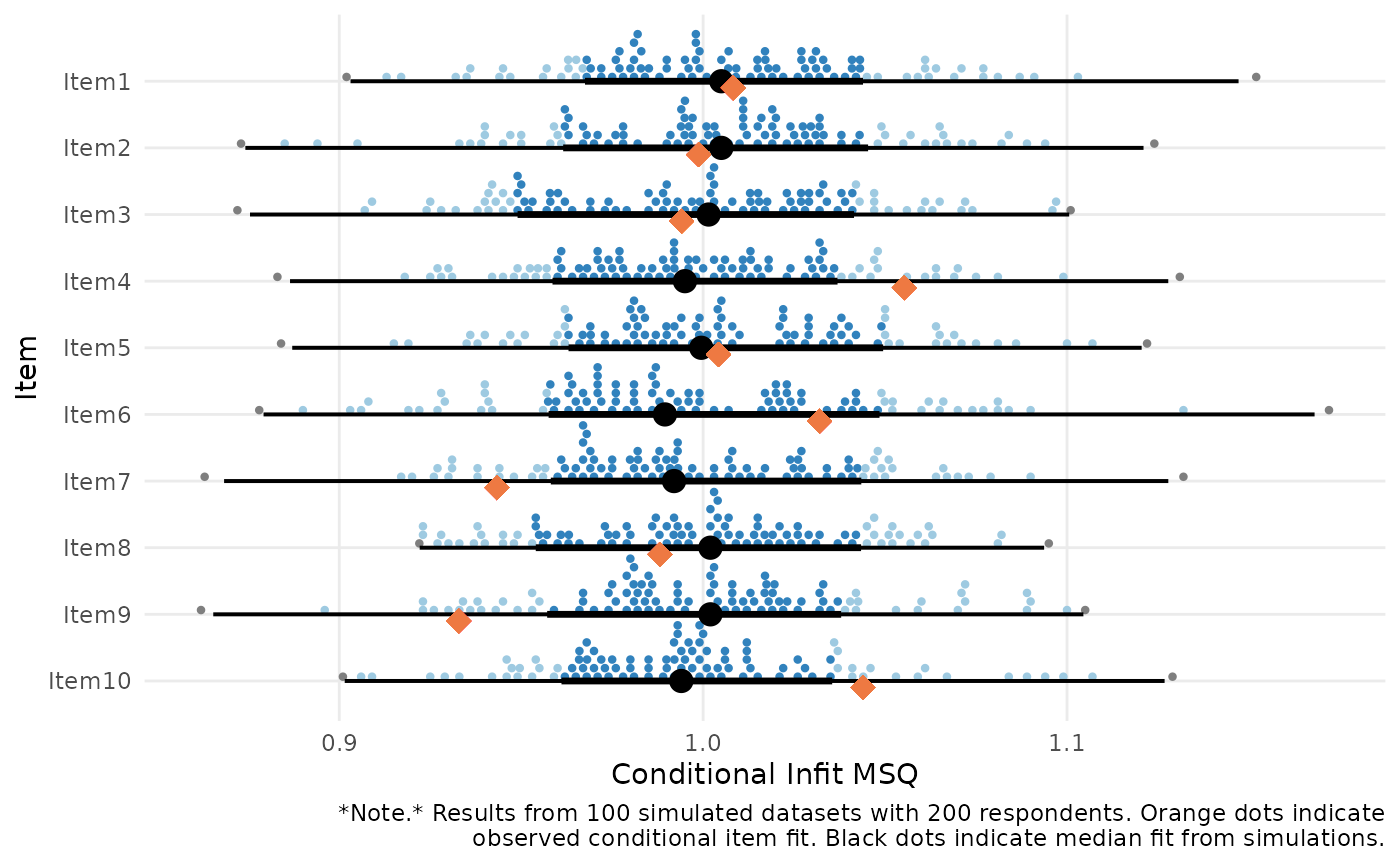

# With observed fit overlaid (infit only, the default)
RMitemInfitCutoffPlot(cutoff_res, data = sim_data)

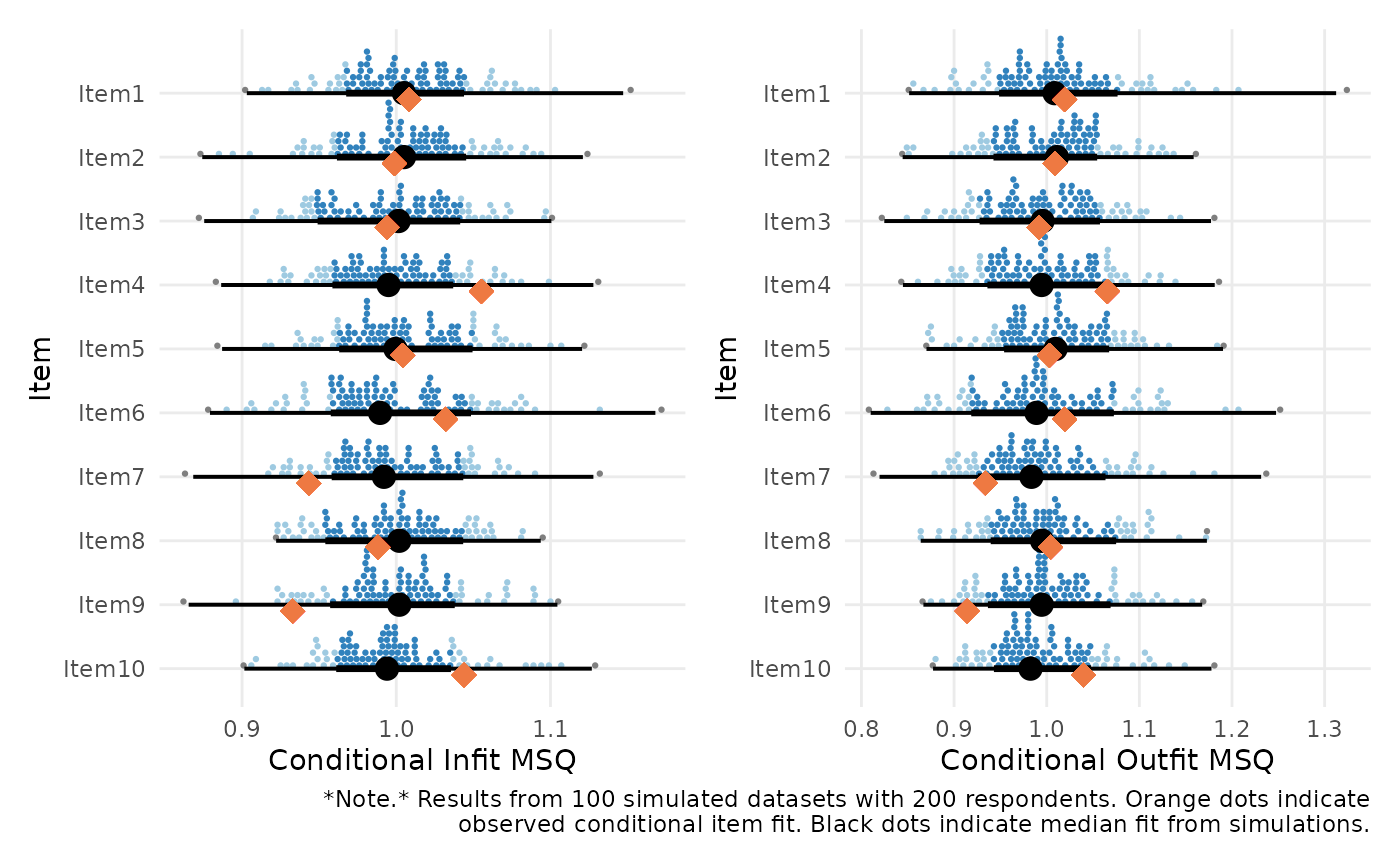

# Both infit and outfit panels side by side
RMitemInfitCutoffPlot(cutoff_res, data = sim_data, output = "both")

# }
