Plot Distribution of Simulated \(Q_3\) Residual Correlations

Source: R/locdep_q3_plot.R
RMlocdepQ3plot.Rd

Visualises the distribution of simulation-based Yen's \(Q_3\) residual correlations per item pair from RMlocdepQ3Cutoff, optionally overlaying observed \(Q_3\) values computed from real data via mirt::residuals(..., type = "Q3").

Usage

RMlocdepQ3Plot(simfit, data, items = NULL, n_pairs = NULL)

Arguments

simfit

The return value of RMlocdepQ3Cutoff (a list with components pair_results, pair_cutoffs, actual_iterations, sample_n, and item_names).

data

Optional. A data.frame or matrix of item responses for computing and overlaying observed \(Q_3\) values. Items must be scored starting at 0 (non-negative integers). When provided, the plot includes orange diamond markers for the observed \(Q_3\) alongside the simulated distribution, plus segment summaries from the cutoff intervals.

items

Optional character vector of item names to include in the plot. Only item pairs where both items are in this vector will be shown. When NULL (default), all item pairs are plotted.

n_pairs

Optional positive integer. When supplied, only the n_pairs item pairs with the largest deviation from the simulated null are plotted, sorted by |observed Q3 - median(simulated Q3 per pair)| descending when data is supplied, or by |median(simulated Q3 per pair)| otherwise. Applied after the items filter when both are supplied. Values larger than the number of available pairs are silently capped.

Value

A named list of two ggplot objects (mirroring the $matrix / $pairs structure of RMlocdepQ3's table output):

$pairs

the per-pair plot described below (always returned).

$matrix

a lower-triangle tile heatmap of the observed \(Q_3\) matrix, with pairs above the global dynamic cut-off outlined. This needs the observed data, so it is NULL (with a message) when data is not supplied. When items is given, the heatmap is subset to those items; n_pairs does not apply to it.

Details

Uses ggdist::stat_dotsinterval() (when data is not supplied) or ggdist::stat_dots() (when data is supplied) with point_interval = "median_hdci" and .width = c(0.66, 0.95, 0.99).

The $pairs plot shows one row per item pair (labelled as "Item1 - Item2"). Only the upper triangle of the \(Q_3\) matrix is plotted (pairs are unordered under symmetric \(Q_3\), unlike partial gamma which is direction-dependent).

When data is not supplied, the function plots the simulated Q3 distributions as dot-interval plots using ggdist::stat_dotsinterval() with median and Highest Density Continuous Interval (HDCI) summaries.

When data is supplied, the function:

  1. Computes observed \(Q_3\) residual correlations under the same estimator used to build simfit (its $estimator: CML/WLE by default, or MML via mirt).

  2. Overlays observed \(Q_3\) values as orange diamond markers on the simulated distributions.

  3. Shows per-pair cutoff intervals (from simfit$pair_cutoffs) as black line segments, with thicker segments for the 66\ interval and black dots for the median.

The ggplot2, ggdist, mirt, and scales packages must be installed (most are in Suggests, not Imports).

See also

RMlocdepQ3, RMlocdepQ3Cutoff, RMlocdepGammaPlot

Examples

# \donttest{
if (requireNamespace("ggplot2", quietly = TRUE) &&
    requireNamespace("ggdist", quietly = TRUE)) {
  set.seed(42)
  sim_data <- as.data.frame(
    matrix(sample(0:1, 200 * 10, replace = TRUE), nrow = 200, ncol = 10)
  )
  colnames(sim_data) <- paste0("Item", 1:10)

  # Run simulation (use more iterations, e.g. 500+, in real analyses)
  cutoff_res <- RMlocdepQ3Cutoff(sim_data, iterations = 50,
                                 parallel = FALSE, seed = 42)

  # Simulated distribution only
  RMlocdepQ3Plot(cutoff_res)

  # With observed Q3 overlaid

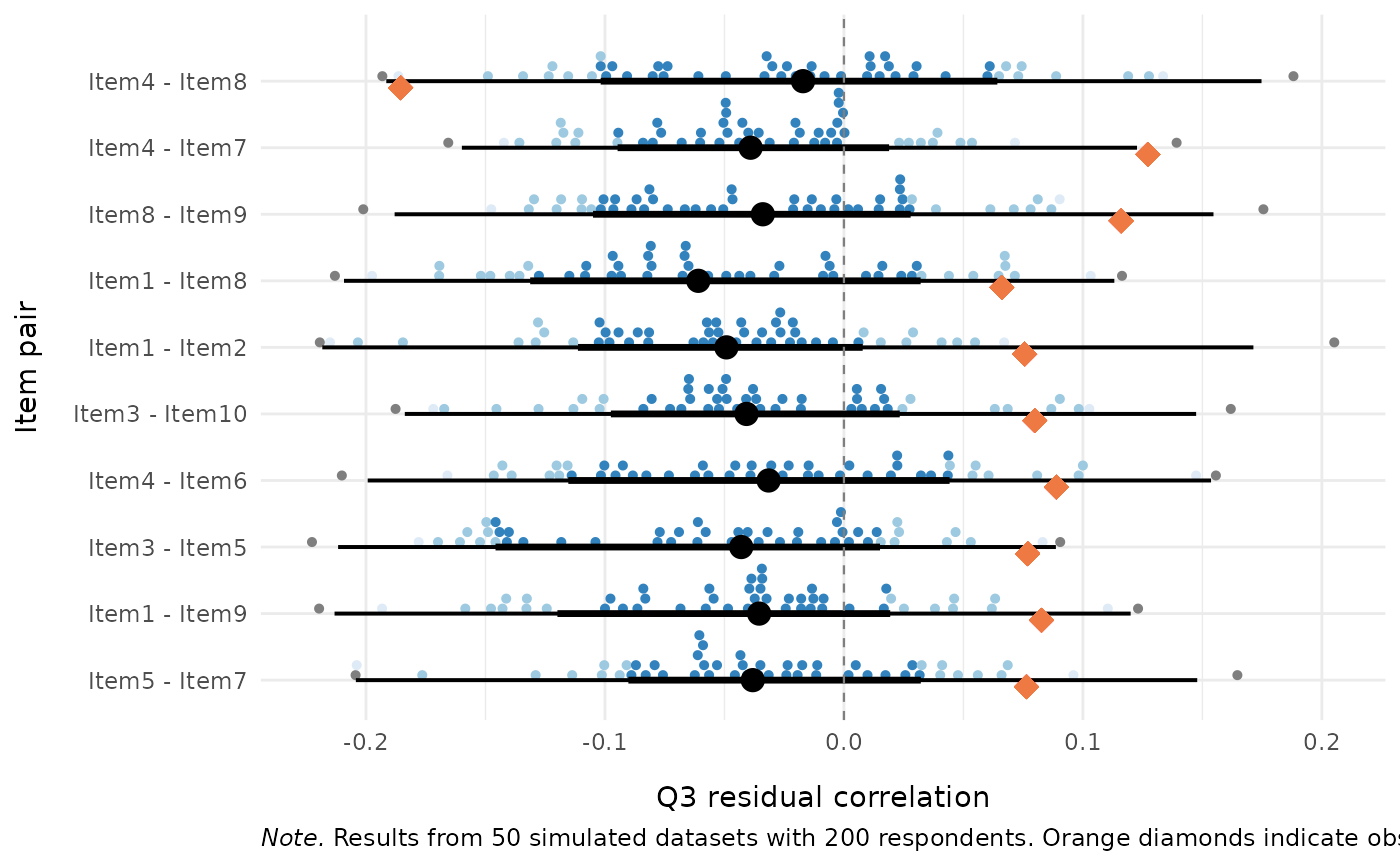

  RMlocdepQ3Plot(cutoff_res, data = sim_data)

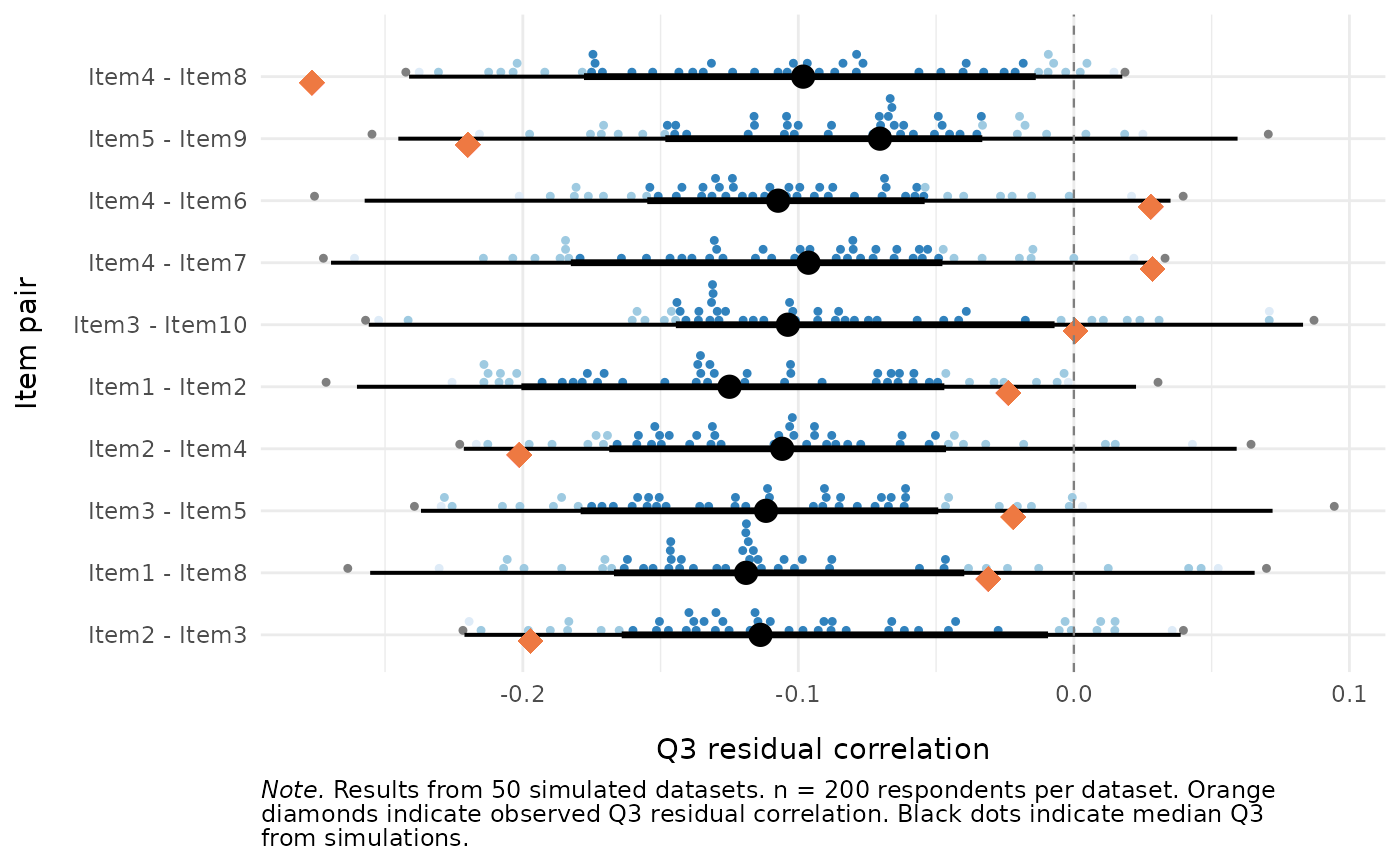

  # Top 10 pairs by departure from null
  RMlocdepQ3Plot(cutoff_res, data = sim_data, n_pairs = 10)
}
#> The Q3 tile heatmap ($matrix) requires `data`; returning $matrix = NULL.
#> $matrix

#>
#> $pairs

#>
# }
