Item Response Distribution Bar Chart

Source: R/data_plots.R
RMplotBar.Rd

Creates a faceted bar chart showing the response distribution for each item, with counts and percentages displayed on each bar. Each item gets its own panel, with response categories on the x-axis and percentage of responses on the y-axis. This is a descriptive data visualization tool intended for use before model fitting.

Usage

RMplotBar(
  data,
  item_labels = NULL,
  category_labels = NULL,
  ncol = 1L,
  label_wrap = 25L,
  text_y = 6,
  viridis_option = "A",
  viridis_end = 0.9,
  font = "sans"
)

Arguments

data

A data.frame in wide format containing only the item response columns. Each column is one item, each row is one person. All columns must be numeric (integer-valued). Response categories may be coded starting from 0 or 1. Do not include person IDs, grouping variables, or other non-item columns.

item_labels

An optional character vector of descriptive labels for the items (facet strips). Must be the same length as ncol(data). If NULL (the default), column names are used. Labels are displayed as "column_name - label".

category_labels

An optional character vector of labels for the response categories (x-axis). Must be the same length as the number of response categories spanning from the minimum to the maximum observed value. If NULL (the default), numeric category values are used.

ncol

Integer. Number of columns in the faceted layout. Default is 1L.

label_wrap

Integer. Number of characters per line in facet strip labels before wrapping. Default is 25L.

text_y

Numeric. Vertical position (in percent units) for the count labels on each bar. Adjust upward if bars are tall. Default is 6.

viridis_option

Character. Viridis palette option for the count-text colour. One of "A" through "H". Default is "A".

viridis_end

Numeric in \([0, 1]\). End point of the viridis colour scale for count text. Adjust if text is hard to read against the bar colours. Default is 0.9.

font

Character. Font family for all text. Default is "sans".

Value

A ggplot2::ggplot object.

Details

Each item is displayed as a separate facet panel with the item label in the strip on the left side. Bars are coloured by response category using the viridis palette. Each bar shows the count (n = X) as text.

Input requirements:

  • All columns must be numeric (integer-valued).

  • The data frame must contain at least 2 columns (items) and at least 1 row (person).

See also

RMplotStackedbar(), RMplotTile()

Examples

if (requireNamespace("eRm", quietly = TRUE) &&
    requireNamespace("ggplot2", quietly = TRUE)) {
  data(pcmdat2, package = "eRm")

  # Basic response distribution plot
  RMplotBar(pcmdat2)

  # With custom item labels
  RMplotBar(
    pcmdat2,
    item_labels = c("Mood", "Sleep", "Appetite", "Energy")
  )

  # Two-column layout with wrapped labels
  RMplotBar(
    pcmdat2,
    item_labels = c(
      "General mood and emotional wellbeing",
      "Quality of sleep at night",
      "Appetite and eating habits",
      "Overall energy level during the day"
    ),
    ncol = 2, label_wrap = 20
  )

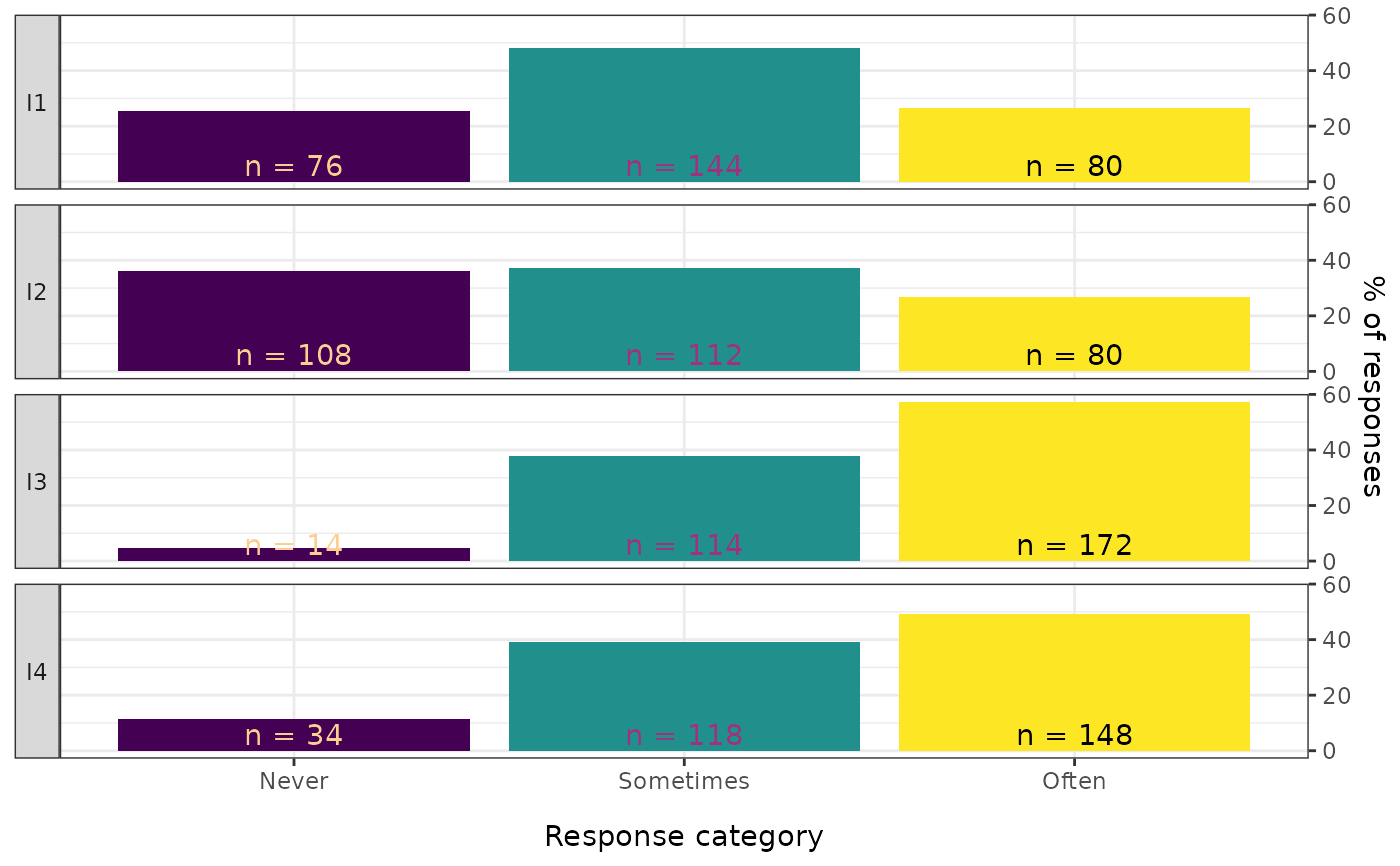

  # With custom category labels
  RMplotBar(
    pcmdat2,
    category_labels = c("Never", "Sometimes", "Often")
  )
}
