Item-Threshold Hierarchy Plot

Visualises item and threshold locations on the logit scale for a Partial Credit Model. Items are sorted by their (mean-threshold) location; each item shows its location as a black diamond and its individual thresholds as coloured dots with confidence-interval error bars.

Usage

RMitemHierarchy(
  data,
  show_numbers = TRUE,
  sem_multiplier = 1.405,
  item_labels = NULL,
  output = c("ggplot", "dataframe")
)

Arguments

data: A data.frame or matrix of polytomous item responses (non-negative integers, 0-based, max value > 1). One column per item, one row per person.
show_numbers: Logical. When TRUE (default), prints the numerical item location and threshold values next to the points on the plot. When FALSE, only the threshold labels (T1, T2, ...) are shown.
sem_multiplier: Numeric multiplier for the threshold SE used to draw the error bars. Default 1.405 (84% CI). Common alternatives: 1.96 (95% CI), 2.576 (99% CI).
item_labels: Optional character vector of length ncol(data) providing descriptive labels for items. Default NULL uses the column names of data. Labels are appended to the column names on the y-axis (name - label) and wrapped at 36 characters via base-R strwrap().
output: One of "ggplot" (default) – a faceted hierarchy figure – or "dataframe" – the long-format underlying data with one row per (item × threshold).

Value

Either a ggplot (default) or a data.frame with columns Item, ItemLabel, Threshold, ThresholdLocation, ThresholdSE, and ItemLocation (the per-item mean of the centred thresholds).

Details

Threshold locations are centred at the grand mean of all thresholds across items, so the dashed reference line at 0 represents the mean threshold location across the scale.

Confidence intervals around thresholds are 84% by default (sem_multiplier = 1.405), following Payton, Greenstone, & Schenker (2003) – non-overlap of 84% intervals approximately corresponds to a two-sample significance test at \(\alpha = 0.05\). Use sem_multiplier = 1.96 for 95% intervals.

Polytomous only. Dichotomous items have a single threshold that coincides with the item location; the hierarchy plot is visually degenerate in that case. For dichotomous data use RMtargeting() or RMscoreSE() instead.

Centring convention. The PCM thresholds returned by eRm::thresholds() are shifted so that their grand mean is zero; each item's location is then the mean of its centred thresholds. The dashed horizontal reference line on the plot marks this zero – i.e., the average threshold across all items.

References

Payton, M. E., Greenstone, M. H., & Schenker, N. (2003). Overlapping confidence intervals or standard error intervals: What do they mean in terms of statistical significance? Journal of Insect Science, 3(34), 1-6. doi:10.1093/jis/3.1.34

Examples

# \donttest{
data("pcmdat2", package = "eRm")

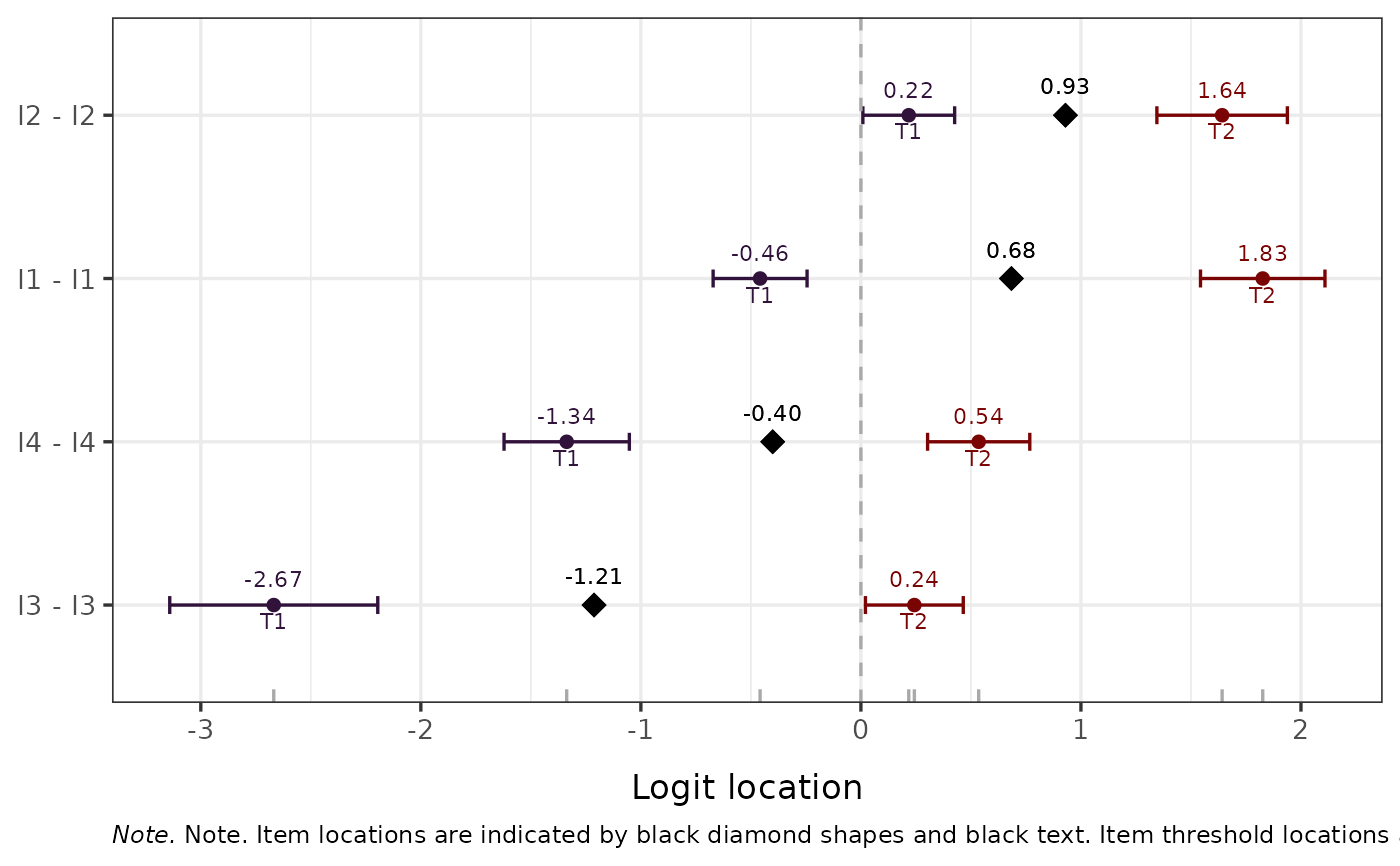

RMitemHierarchy(pcmdat2)

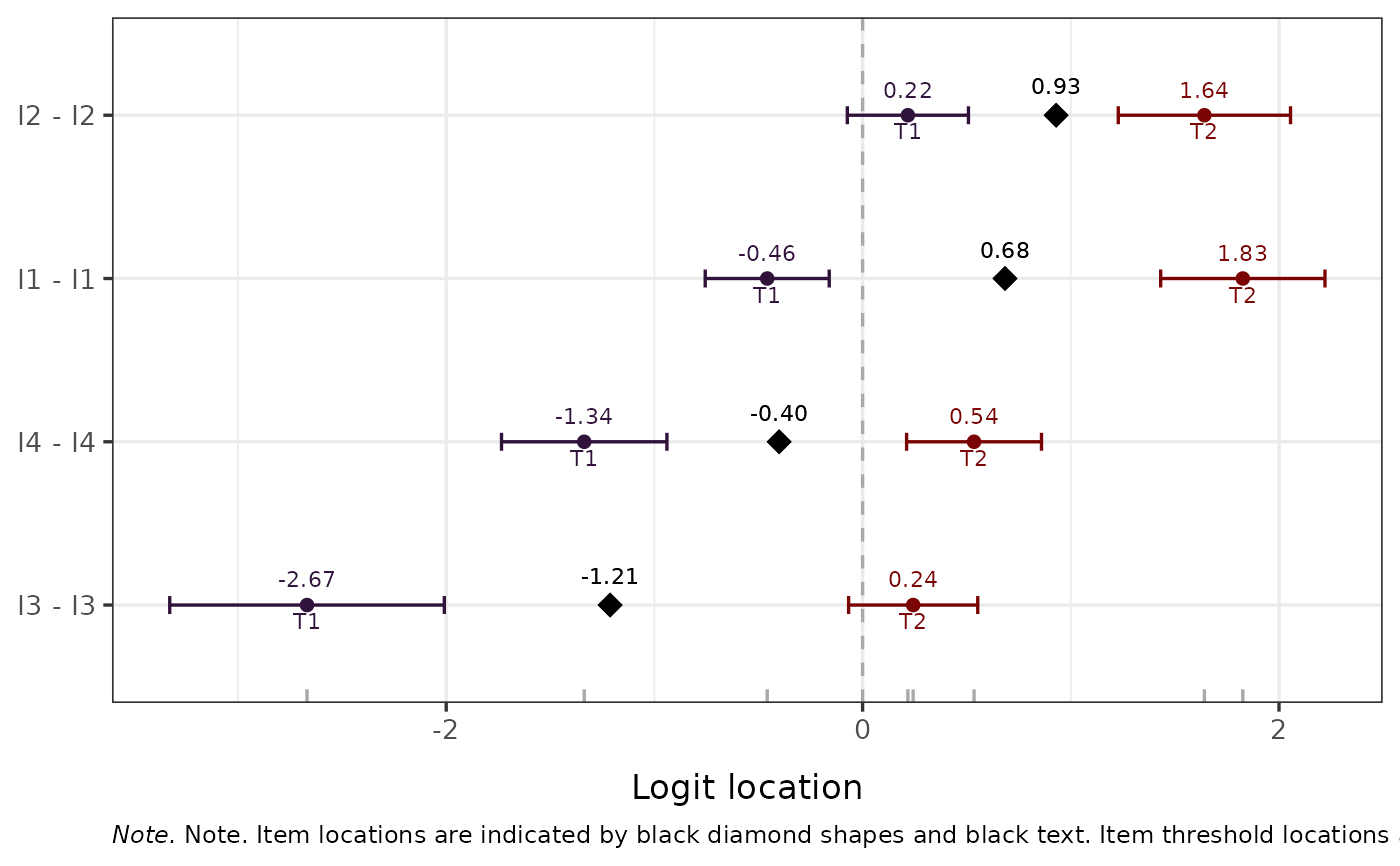

# 95% CI instead of 84%
RMitemHierarchy(pcmdat2, sem_multiplier = 1.96)


# Underlying data.frame
RMitemHierarchy(pcmdat2, output = "dataframe")
#>   Item ItemLabel Threshold ThresholdLocation ThresholdSE ItemLocation
#> 1   I1        I1        T1        -0.4581338   0.1519290    0.6840541
#> 2   I1        I1        T2         1.8262421   0.2013173    0.6840541
#> 3   I2        I2        T1         0.2174992   0.1484292    0.9295923
#> 4   I2        I2        T2         1.6416854   0.2110598    0.9295923
#> 5   I3        I3        T1        -2.6684535   0.3364599   -1.2127610
#> 6   I3        I3        T2         0.2429314   0.1582221   -1.2127610
#> 7   I4        I4        T1        -1.3370918   0.2026607   -0.4008854
#> 8   I4        I4        T2         0.5353210   0.1652776   -0.4008854
# }
